All-Digital Telemetry Receiver
- Demodulation
PCM/FM, SOQPSK-TG, BPSK - Input Frequency Range S-Band2200 ÷ 2390MHz1 ÷ 8 GHz Per Request
- Frequency Steps100KHz
- Noise Figure6.5 dB max
- Bit RateUp to 28Mbps
- SFDR>70dB
- IF Rejection>70 dB
- IF Output140MHz
- Output Signal LevelTTL or RS422
- IRIG-106 Complient LDPC error correctionK = 1024, R = 4/5

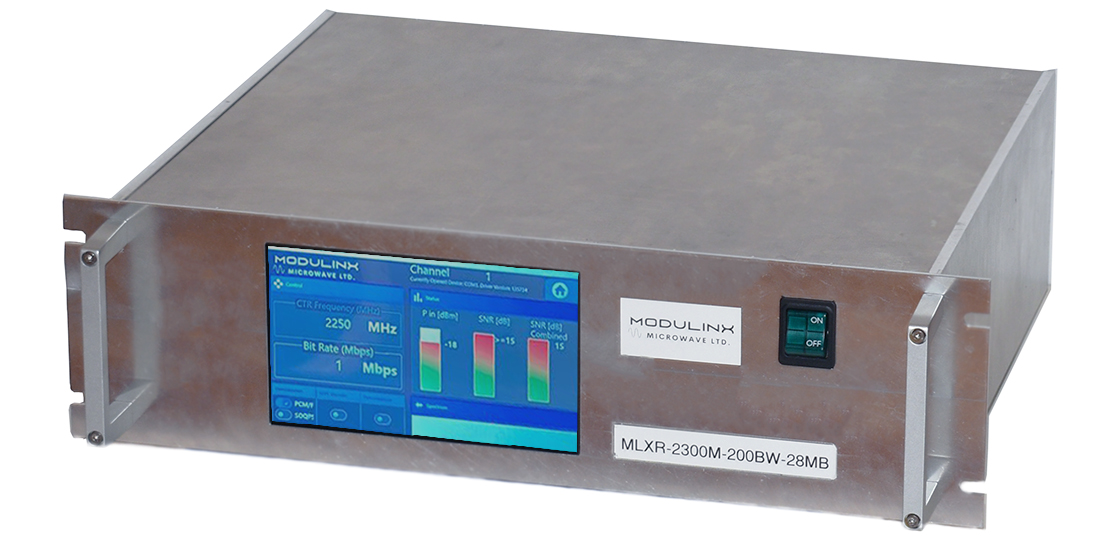

All-Digital 3U Rackmount Telemetry Receiver
2 Receivers in a 19" case including Diversity Combiner, Two channel Pre-Detection Diversity Combiner, Embedded 7" capacitive touch screen with intuitive, easy to use GUI.
Build exactly the receiver your mission needs. Our All-Digital platform starts with a rugged 19″ rackmount chassis and 7″ touchscreen UI, then layers on the essentials: dual-channel, pre-detection diversity combining for reliable links; multi-mode demodulation (PCM/FM, SOQPSK-TG, BPSK); standard S-band coverage with options to extend from 1–8 GHz as requirements evolve; clean 140 MHz IF plus simultaneous TTL/RS-422 data outputs; and IRIG-106-compliant LDPC decoding to maximize margin. Specify the bands, bit rates, and interfaces that fit your workflow—and we’ll deliver a telemetry receiver tuned to your purpose, ready for flight test or range operations.
Download Datasheet
Mission-Tailored Telemetry Receiver on an All-Digital Platform
An all-digital core you can configure to fit any mission. Choose the RF coverage, channel count, and data interfaces you need today, then scale or update in software as requirements evolve. The result is a flexible, reliable telemetry receiver that integrates cleanly with existing workflows—from lab validation to flight test and beyond.
